10.2HV 10kWh High-Voltage Home Battery – LiFePO4 Lithium Ion for Residential
EGbatt-10.2HV 10kWh High-Voltage Home Battery
– LiFePO4 Lithium Ion for Residential Use

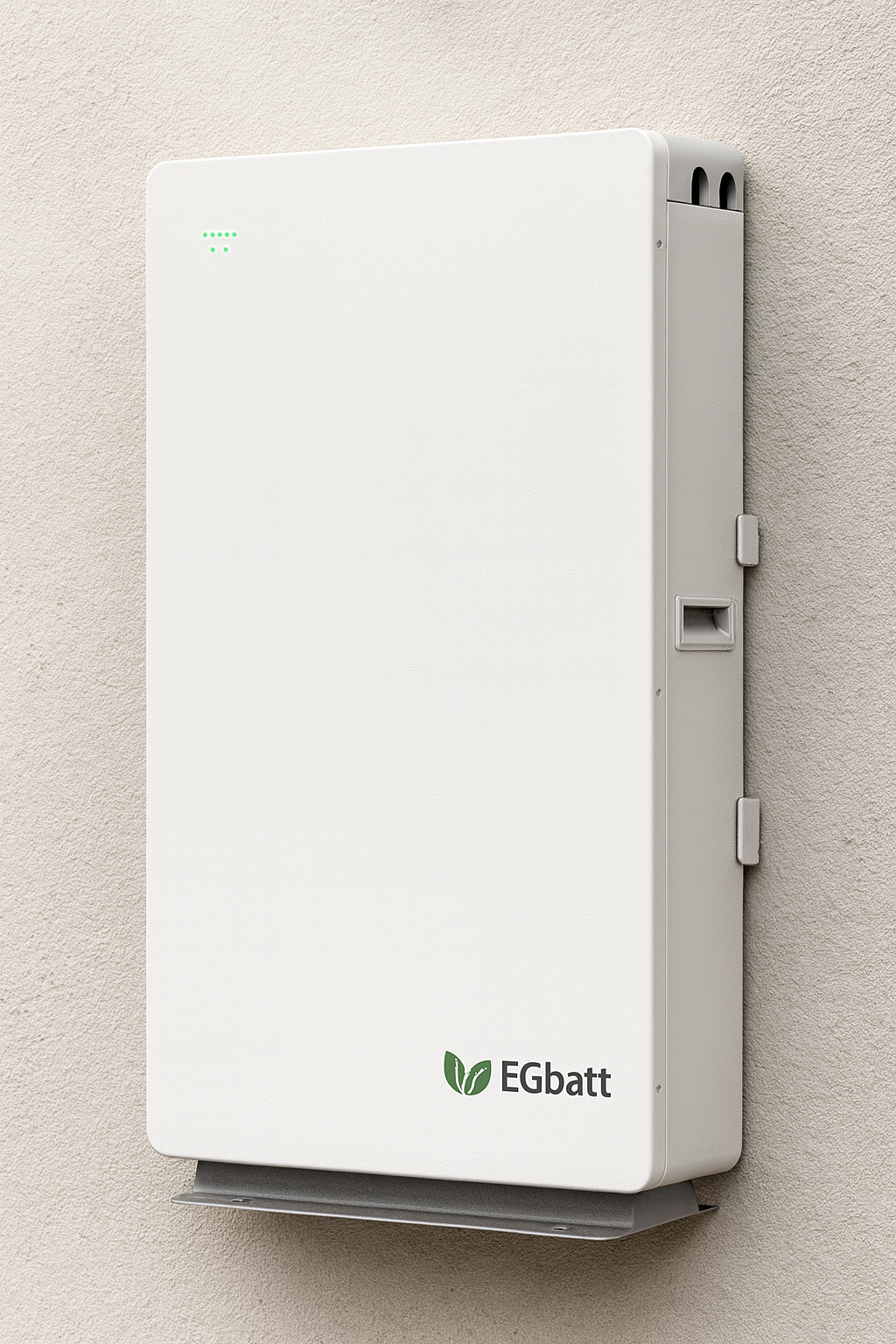

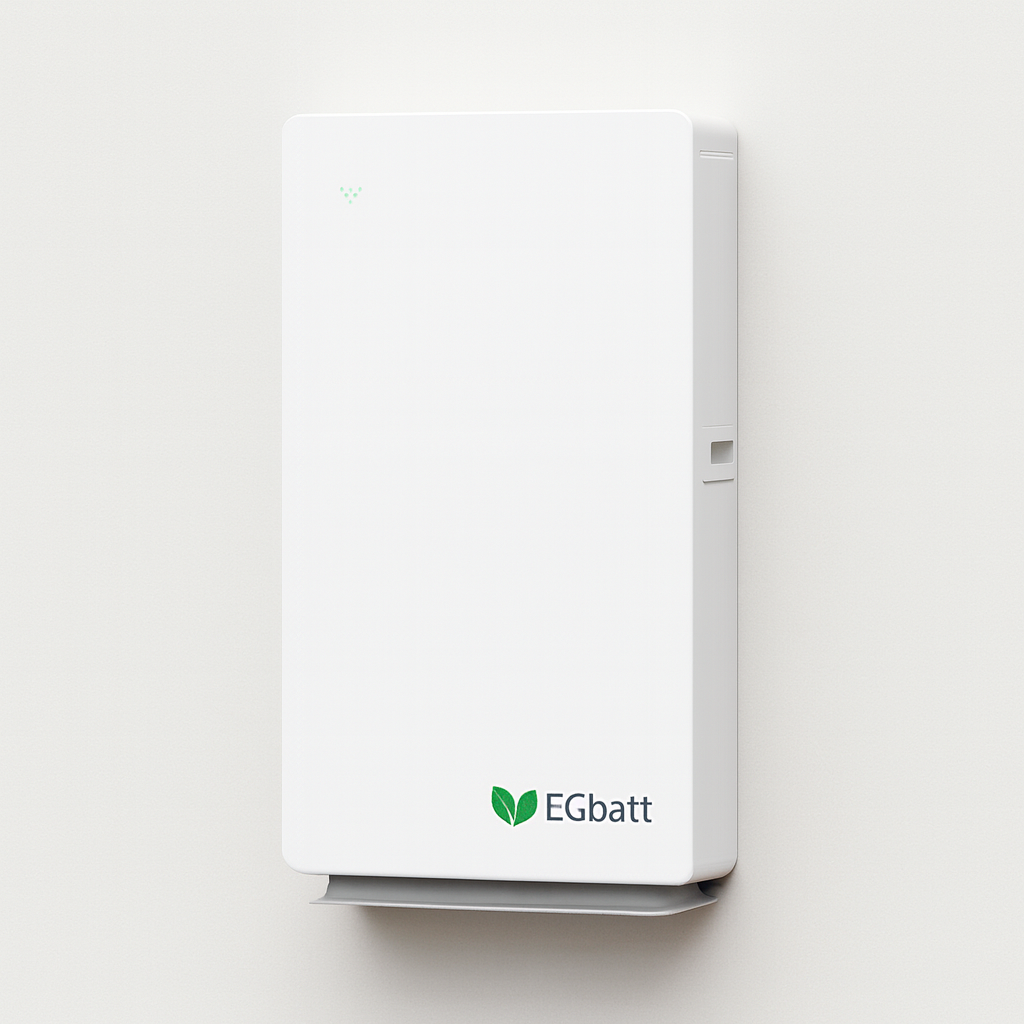

Discover the EGbatt-10.2HV, a compact 10kWh high-voltage home battery designed for efficient residential energy storage. This wall-mount LiFePO4 lithium ion battery offers seamless compatibility with HV inverters, making it an ideal small HV home battery system for solar-powered homes. With 10.24 kWh nominal energy, the EGbatt-10.2HV provides reliable short-term backup power, helping you reduce energy costs and achieve greater energy independence. As a residential HV lithium battery, it supports up to 16 units in parallel for scalable solutions, perfect for those seeking a small capacity HV battery without compromising performance.
Why Choose the EGbatt-10.2HV 10kWh HV Battery?
The EGbatt-10.2HV is engineered as a high-voltage home battery for short-term residential backup, featuring a built-in Battery Management System (BMS) that monitors voltage, current, and temperature for superior safety and longevity. Whether storing excess solar energy or ensuring power during outages, this LiFePO4 lithium ion battery delivers high-efficiency performance with a 90% depth of discharge (DOD). It's the ultimate small HV home battery system for modern households, fully HV inverter compatible for easy integration.
Key Benefits:
- Energy Efficiency: 9.22 kWh usable energy at 90% DOD, optimizing your 10kWh high-voltage home battery usage.
- Scalability: Connect up to 16 batteries in parallel to expand your residential HV lithium battery system for longer runtime.
- Long Lifespan: Over 6,000 cycles, backed by a 5+5 year warranty for dependable small capacity HV battery performance.
- Safety First: Advanced BMS protections against over-discharge, overcharge, over-current, and extreme temperatures in this LiFePO4 lithium ion design.

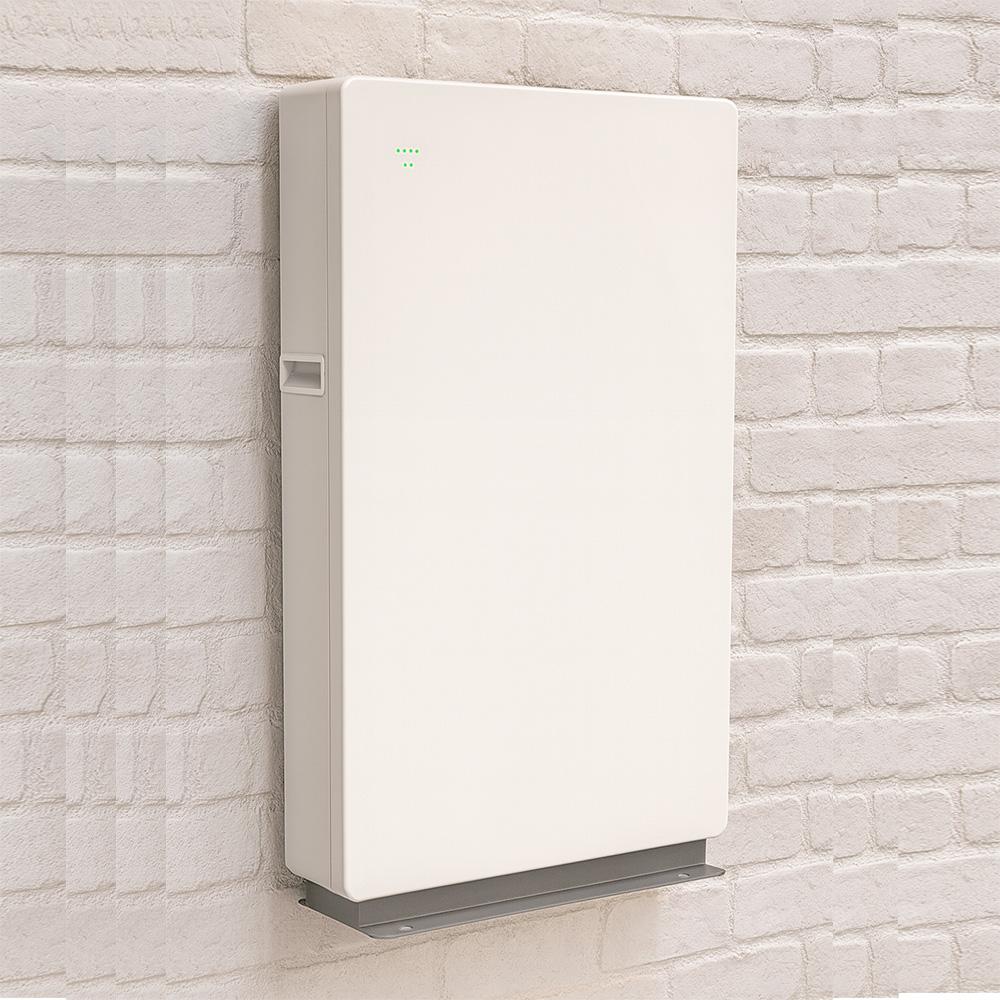

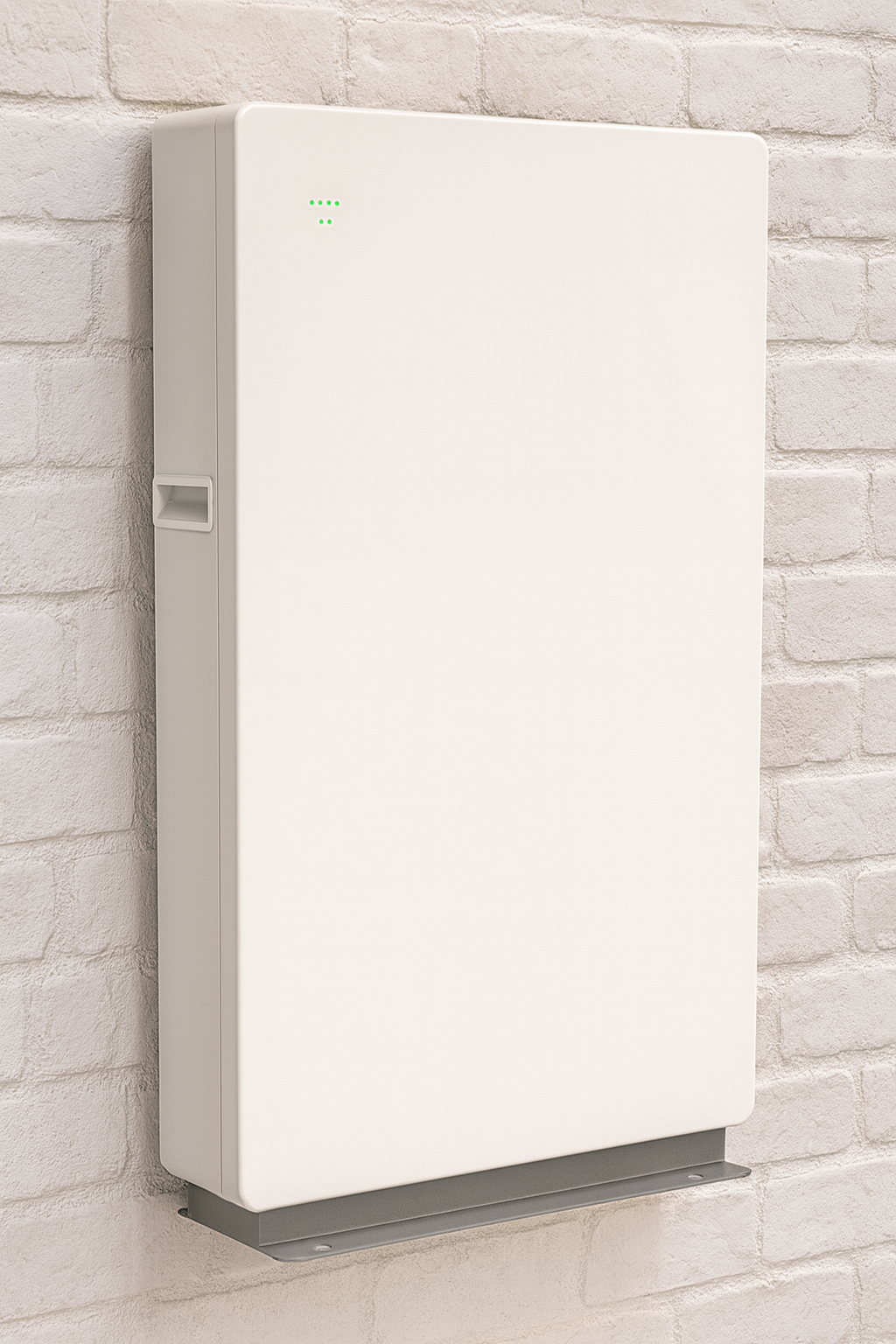

- Easy Installation: Wall-mount or floor-mount options with natural cooling, ideal for a compact high-voltage home battery setup.
- Eco-Friendly: LiFePO4 technology ensures safe, non-toxic operation with certifications like CE, MSDS, and UN38.3, making it a top residential HV lithium battery choice.
Product Features
- High-Voltage Output: Boosts low-voltage cells to 330-450V, ensuring full HV inverter compatible functionality for your 10kWh HV battery.
- Communication Ports: CAN and RS485 for seamless integration and monitoring in small HV home battery systems.
- Compact Design: Dimensions of 972 x 528 x 162 mm and 98 kg weight, perfect for space-efficient wall-mount installation as a small capacity HV battery.
- Operating Range: Functions in temperatures from 0°C to 60°C, with IP54 protection against dust and moisture for reliable residential use.
- Backup Power Port: 48V unboosted spare port for emergency charging, enhancing the versatility of this high-voltage home battery.
- Parallel Operation: Supports multi-battery setups with voltage differences under 1V, ideal for expanding your residential HV lithium battery capacity.
| Category | Parameter | Value |
|---|---|---|
| Electrical | Battery Type | LiFePO4 (Lithium Ion) |
| Nominal Capacity (Ah) | 200 | |
| Nominal Voltage (V) | 51.2 | |
| Battery Voltage Range (V) | 46.4 ~ 57.9 | |
| Working Voltage (V) | 330 ~ 450 | |
| Nominal Energy (kWh) | 10.24 (10kWh) | |
| Available Energy (kWh) | 9.22 (90% DOD) | |
| Max. Parallel Units | 16 | |
| Nominal DC Power (kW) | 4.8 | |
| Max. DC Power (kW) | 5 | |
| Charge/Discharge Current (A) | Recommended: 12.5, Max: 16 | |
| General | Depth of Discharge | 90% |
| Dimensions (H/W/D, mm) | 972 x 528 x 162 | |
| Weight (kg) | 98 | |
| Protection Level | IP54 | |
| Working Temperature | 0°C ~ 60°C | |
| Storage Temperature | 0°C ~ 35°C | |
| Working Humidity | 5% ~ 95% | |
| Working Altitude | ≤ 2000m | |
| Cycle Life | ≥ 6000 times | |
| Installation | Wall-Mount, Floor-Mounted | |
| Cooling Mode | Natural Cooling | |
| Communication Port | CAN, RS485 | |
| Warranty | 5+5 years | |
| Certificates | CE, MSDS, UN38.3 |
Installation and Setup

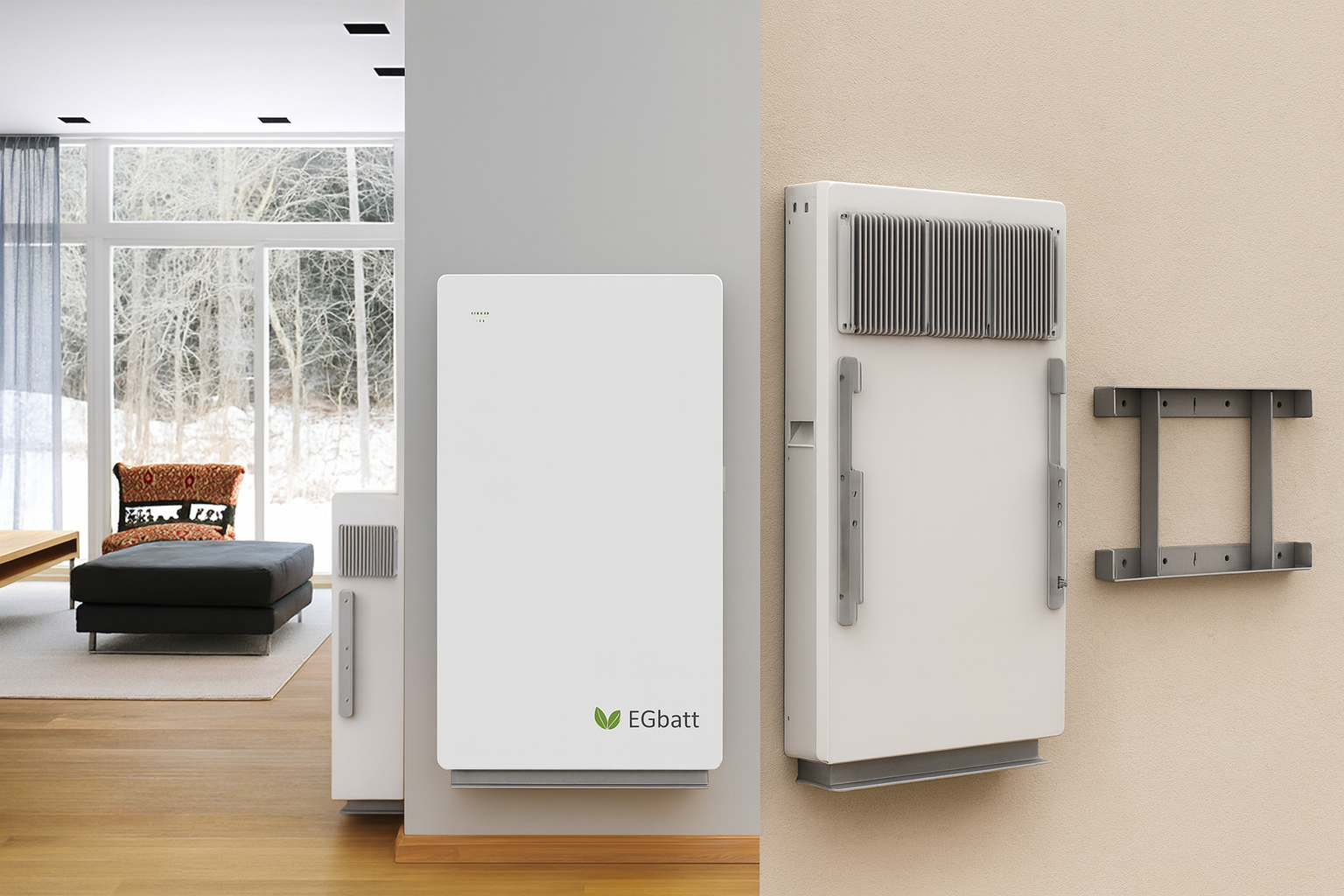

Installing the EGbatt-10.2HV 10kWh high-voltage home battery is straightforward with wall-mount options for space-saving residential setups. Ensure a dry, indoor environment away from heat sources and direct sunlight. This HV inverter compatible battery is perfect for small HV home battery systems. Key steps include:
- Inspection: Check packaging for damage and verify accessories like power cables, mounting brackets, and communication lines.

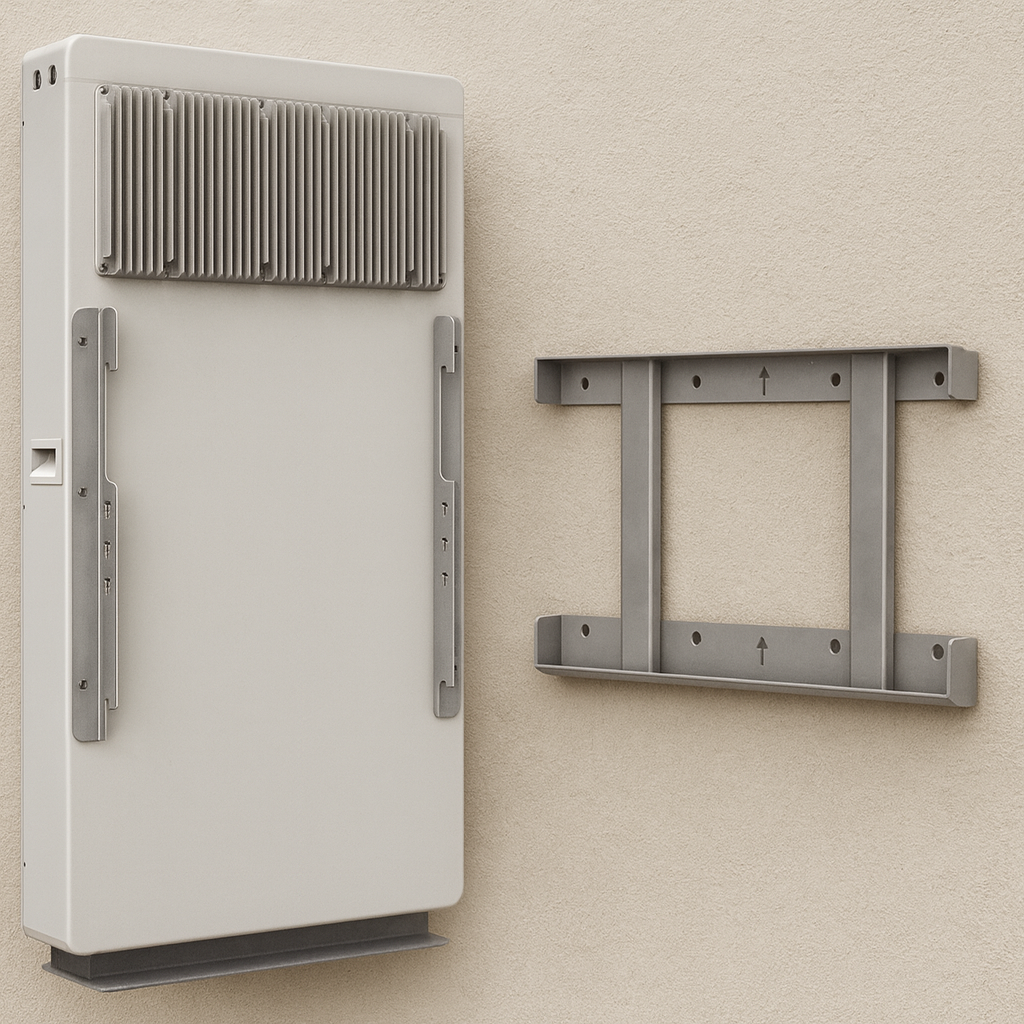

- Mounting: Use expansion screws for secure wall-mount fixing, maintaining 200mm clearance for ventilation in your residential HV lithium battery installation.

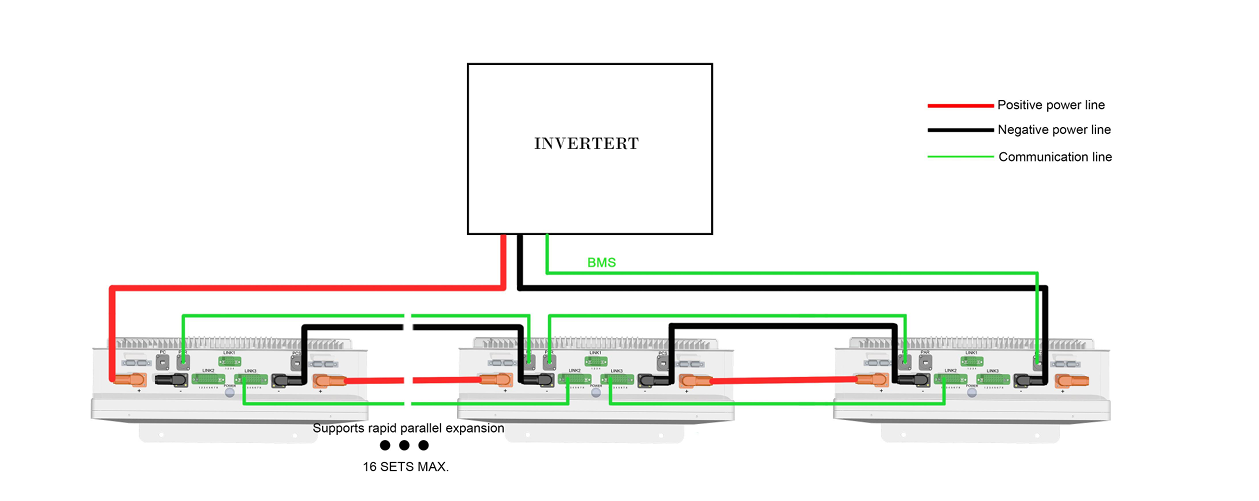

- Wiring: Connect power cables (positive to positive, negative to negative) and communication ports to your HV inverter. For parallel setups in small capacity HV battery systems, ensure voltage differences are within 1V.
- Tools Needed: Measuring tape, hammer drill, socket wrench, cross screwdriver, ESD gloves, safety goggles, dust mask, and safety shoes.
For detailed instructions, refer to the included user manual.
Maintenance and Safety
- Cleaning: Use a soft, dry brush to remove dust from your LiFePO4 lithium ion battery; avoid solvents or liquids.
- Storage: Keep at 30-60% SOC in temperatures between -10°C and 45°C. Recharge over-discharged batteries promptly for this 10kWh HV battery.
- Safety Precautions: Do not disassemble, expose to moisture, or short-circuit this high-voltage home battery. Always handle with care to prevent injury or damage.
In emergencies, disconnect power immediately and use a dry powder extinguisher if needed. For troubleshooting, such as LED indicators or charging issues in your small HV home battery system, consult the manual or contact support.
Frequently Asked Questions (FAQ)
Based on common user queries for high-voltage home batteries like the EGbatt-10.2HV:
- Why won't my battery turn on? It may be deeply discharged. Charge it first using an external charger at 51V or above. If issues persist, contact support.
- Can I charge or discharge in extreme temperatures? Charging is protected above 60°C or below 0°C; discharging below -20°C. Move to a 0-60°C range for optimal operation.
- What if the current exceeds limits? Protection activates over 16A. Reduce load by turning off high-power appliances.
- How do I handle parallel battery SOC differences? Charge all to full before paralleling, ensuring voltage within 1V. Balance may take 1-2 cycles.
- Is it compatible with my HV inverter? Yes, with CAN/RS485 ports for most high-voltage inverters. Check voltage match (330-450V).
- What about warranty claims? Covers 5+5 years; unauthorized modifications void it. Keep labels intact.
Ready to Power Your Home?
Upgrade to the EGbatt-10.2HV residential HV lithium battery for dependable, HV inverter compatible energy storage. This 10kWh high-voltage home battery is the perfect small capacity HV battery for efficient, wall-mount residential use. Contact us today for pricing, compatibility checks, or custom configurations. Power your home with renewable energy—order now!
Discover the EGbatt-10.2HV, a compact 10kWh high-voltage home battery designed for efficient residential energy storage. This wall-mount LiFePO4 lithium ion battery offers seamless compatibility with HV inverters, making it an ideal small HV home battery system for solar-powered homes. With 10.24 kWh nominal energy, the EGbatt-10.2HV provides reliable short-term backup power, helping you reduce energy costs and achieve greater energy independence. As a residential HV lithium battery, it supports up to 16 units in parallel for scalable solutions, perfect for those seeking a small capacity HV battery without compromising performance.
Contact US
| Weight | 700 kg |
|---|---|
| Voltage |
256V |
| Brand |
CATL |
Shipping Notice
EGBATT has set a high standard for shipping lithium batteries. As lithium ion batteries fall under DG (dangerous goods) category, they use high-quality DG boxes or DG wooden cases to pack the batteries along with thick foam. This ensures that the batteries are delivered to customers in the best possible condition and without any damage.
We accept shipping
- By express or Air shipping like UPS, DHL, Fedex.
- Shipping by sea to port or to door service.
- FAC to Customer's forwarder company in China.
EGBATT ensures that all of its batteries meet the MSDS and UN38.3 standards. The packaging requirements for lithium batteries shipped by sea depend on the Watt-hour rating for lithium ion cells or batteries, or the lithium metal content for lithium metal cells or batteries. The packaging needs to meet UN specifications or be strong and rigid packing that can withstand the shocks, mechanical handling, and loading encountered during transport.
Shipping Regulation
If you are an international customer, please note that products will be shipped directly from China. To place your order, please contact odmbattery@outlook.com manually, rather than ordering on the website, as shipping costs may be inaccurate for regions outside of the USA.
EGbatt understands the importance of proper handling and regulation compliance when it comes to shipping lithium ion batteries. We take great care to follow all regulations for sea and air shipping to ensure the safe and secure transport of these potentially hazardous materials.
Shipping lithium ion batteries comes with specific guidelines outlined by transportation authorities, including the International Air Transport Association (IATA) and the International Maritime Dangerous Goods (IMDG) code, to minimize the risk of fire or explosion during shipping. These guidelines cover packaging, labeling, and documentation requirements, among other things. At EGbatt, we stay up-to-date with all current regulations and guidelines to ensure we are shipping our products safely and responsibly. We understand the risks involved with transporting lithium ion batteries and take the necessary precautions to minimize those risks for both our customers and our employees.
