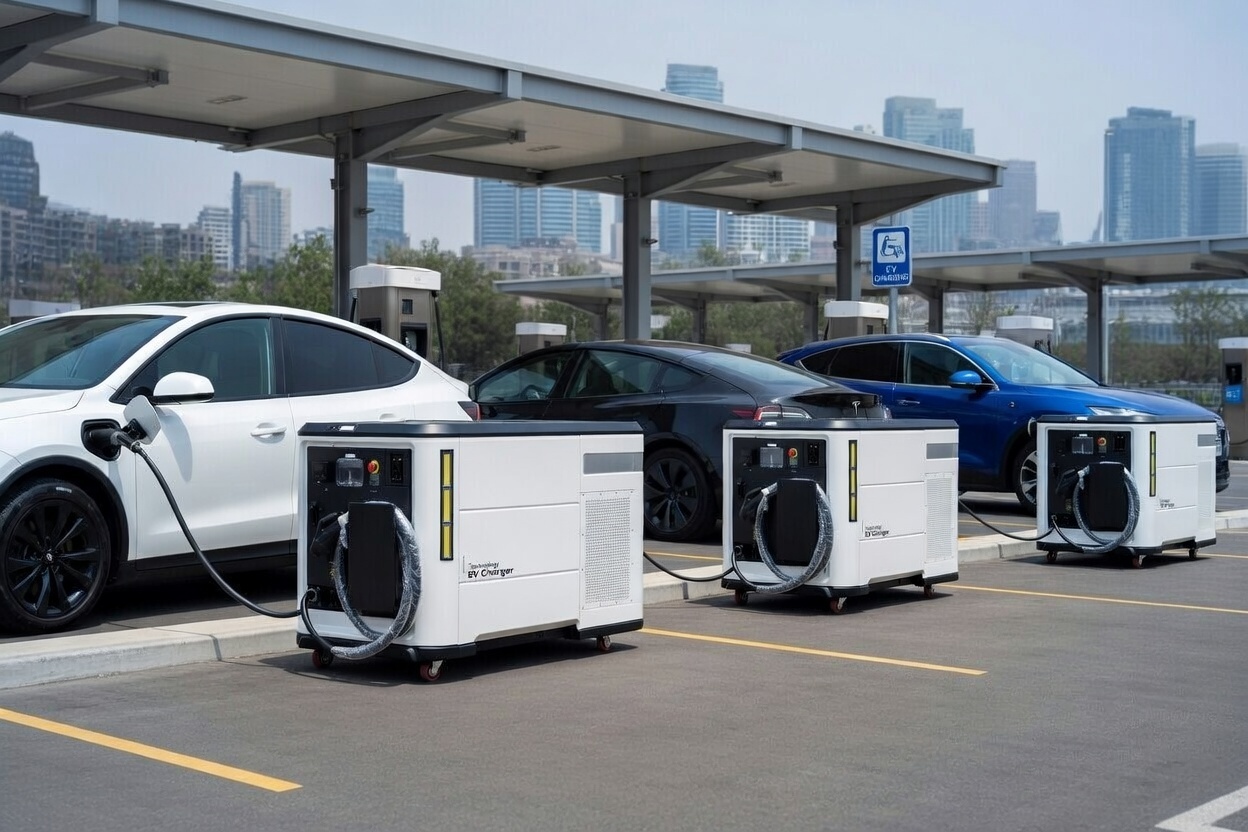

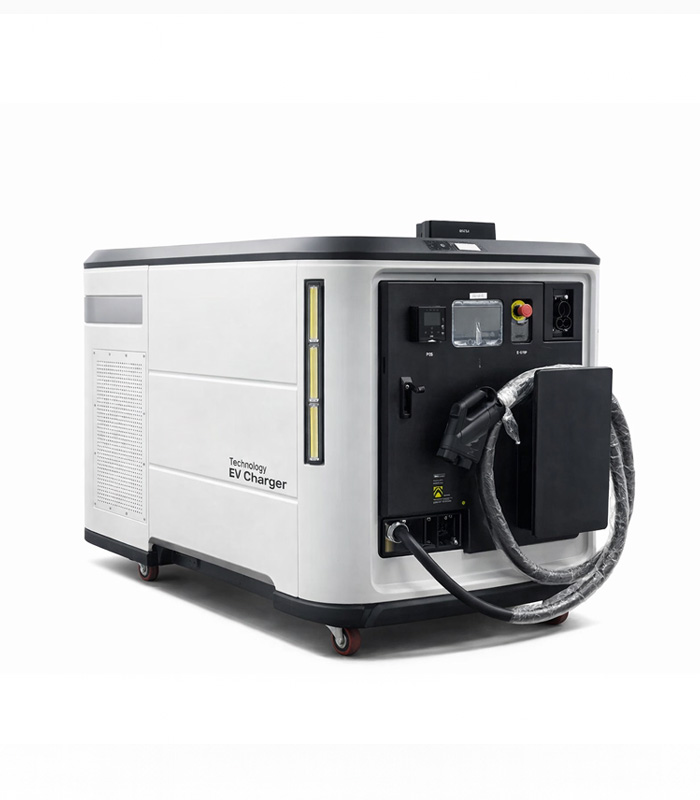

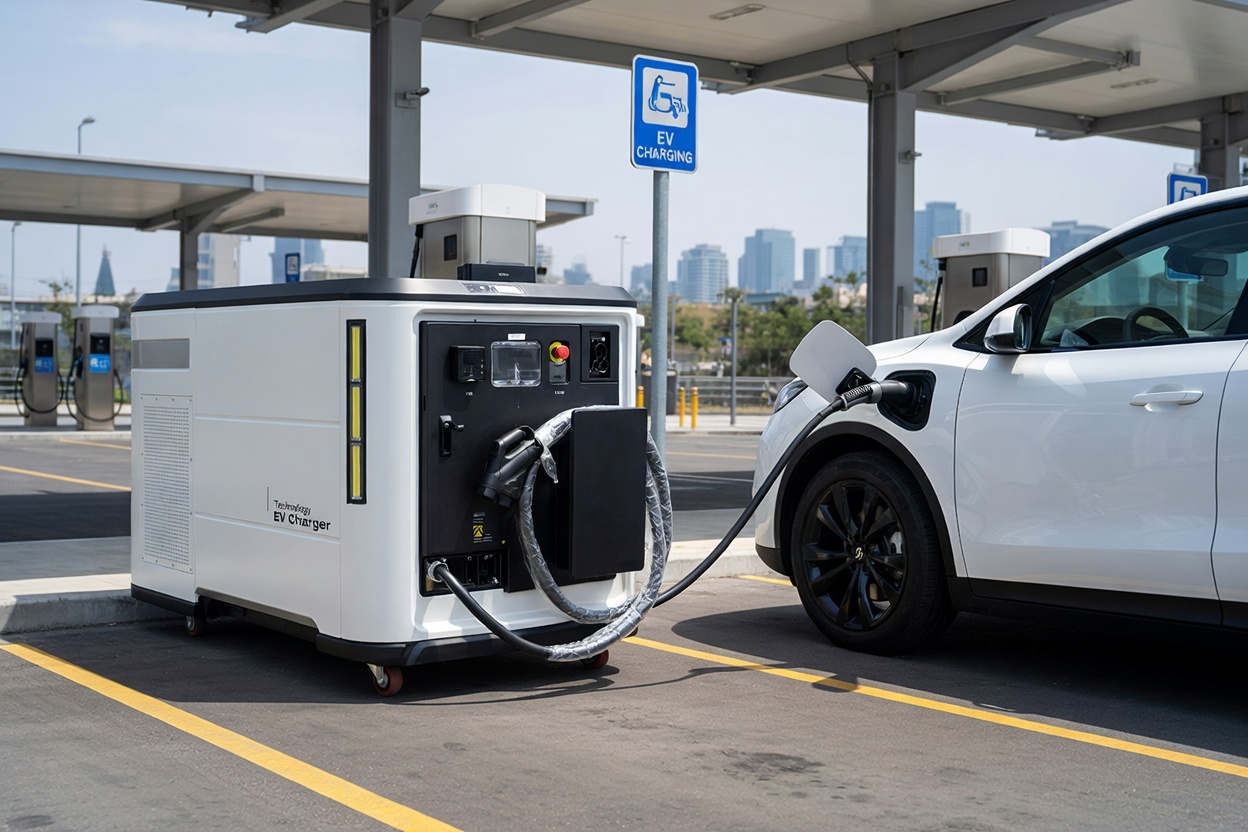

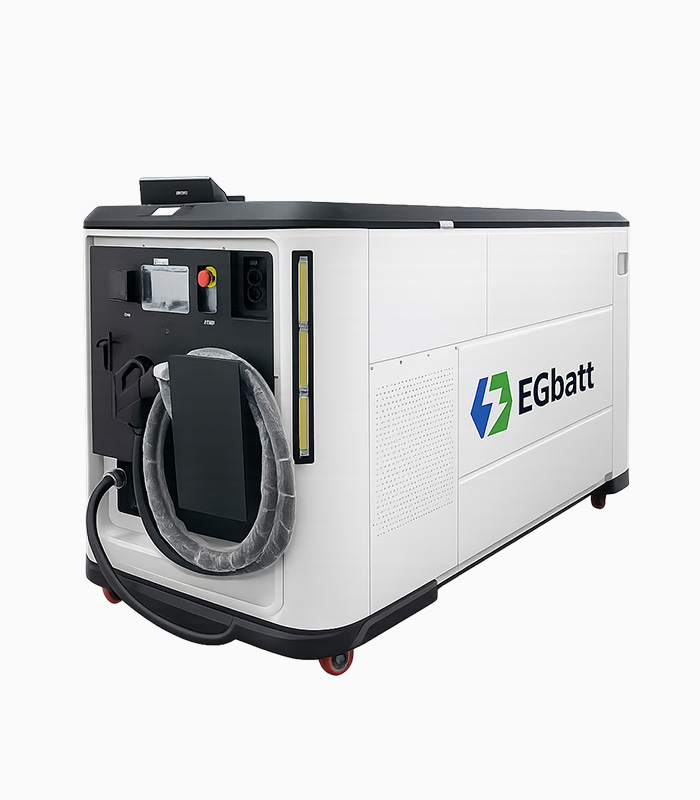

Off-Grid EV Charger with Battery Storage 120KW/200kWh
DC Fast Charging Solution with Integrated Energy Storage
Reliable EV charging anywhere — even without a stable grid.
The EGbatt Off-Grid DC Fast Charger with Integrated Battery Storage combines a 120kW DC fast charger with a 200kWh lithium battery energy storage system, enabling EV charging in locations where grid power is limited, unstable, or unavailable.
Designed for remote charging stations, fleet depots, construction sites, and temporary charging infrastructure, this system provides fast EV charging with built-in energy storage and intelligent energy management.
With UL-certified safety systems, flexible AC/DC charging input, and wide voltage compatibility, it offers a dependable solution for off-grid EV charging, peak-shaving applications, and backup charging infrastructure.
Off-Grid EV Charger with Battery Storage
Why Choose an EV Charger with Integrated Battery Storage
Traditional fast chargers require high-capacity grid connections, expensive infrastructure upgrades, and long installation timelines.
This battery-integrated EV charging station solves those problems by storing energy internally and delivering high-power DC charging when vehicles connect.
Key advantages include:
Off-grid EV charging capability
Reduced grid upgrade costs
Peak shaving and load management
Rapid deployment charging infrastructure
Reliable backup power for EV charging stations
The system can be deployed in locations where grid capacity is insufficient for high-power charging, while still providing fast charging performance.
Key Features of the Off-Grid DC Fast Charger
Integrated 200kWh Battery Energy Storage
The system includes a 200kWh lithium battery storage module designed to supply high-power charging even when grid power is limited.
Benefits include:
Energy storage for off-grid or hybrid charging
Load balancing and peak shaving
Backup charging capability
Improved station utilization
The battery can support multiple EV charging sessions, allowing continuous operation even during peak demand.
120kW DC Fast Charging Performance
The charger delivers up to 120kW DC fast charging, enabling rapid charging for modern electric vehicles.
Key charging performance:
Output power: 120 kW
Output voltage range: 200V – 1000V DC
Maximum output current: 250A
Connector: CCS1 (supports NACS communication protocol)
Fast charging capability allows vehicles to gain significant driving range within minutes, making it suitable for commercial and high-traffic environments.
Flexible Energy Input (Grid + DC Charging)
The system supports multiple energy input methods for maximum flexibility.
AC input options
Three-phase 208V / 480V AC
Single-phase 240V AC
DC charging input
Maximum DC voltage: 759V
Maximum DC power: 105kW
This allows the charger to integrate with: Grid power, Solar energy systems, External DC chargers, Hybrid microgrid infrastructure
Smart Energy Management Platform
The integrated control platform provides intelligent monitoring and operational control.
Features include:
Remote system upgrades (OTA)
Real-time device monitoring
Intelligent energy management
Flexible power distribution
Remote diagnostics
The system also supports OCPP 1.6 (upgradable to OCPP 2.0.1) for integration with charging network platforms.
Rapid Deployment Charging Infrastructure
Unlike traditional charging stations that require major grid upgrades, this system can be installed quickly with minimal site work.
Advantages include:
No major grid infrastructure upgrades
Faster charging station deployment
Ideal for temporary or mobile charging sites
Supports peak-valley energy management
This makes it particularly suitable for rapid EV charging network expansion.
| Category | Parameter | Specification |
|---|---|---|
| General Information | Product Model | EGbatt BESS Mobile Charger |
| Charger Type | DC Fast Charger with Integrated Energy Storage | |
| Battery Capacity | 200 kWh | |
| Charging Power | 120 kW DC Fast Charging | |
| Display | 7-inch Touchscreen | |
| Dimensions | 2270 × 990 × 1380 mm | |
| Mounting Type | Mobile / Floor Standing | |
| Communication | 4G / Wi-Fi | |
| System Update | OTA Online Upgrade | |
| Communication Protocol | OCPP 1.6 (Upgradable to OCPP 2.0.1) | |
| Energy Storage System | Battery Type | Lithium Battery Energy Storage System |
| Rated Capacity | 200 kWh | |
| Rated Voltage | 665.6 V | |
| DC Charging Output | Maximum Charging Power | 120 kW |
| Output Voltage Range | 200 – 1000 V DC | |
| Maximum Output Current | 250 A | |
| Charging Interface | CCS1 | |
| Cable Length | 5 m | |
| NACS Compatibility | Supports NACS Communication Protocol | |
| Energy Input | AC Input Voltage | 208 Vac / 480 Vac (Three-phase) |
| 240 Vac (Single-phase) | ||
| DC Input Voltage | Maximum 759 V DC | |
| Maximum DC Input Power | 105 kW | |
| Input Frequency | 60 Hz | |
| Input Connector | AC Industrial Plug / DC-DC Charger Port | |
| Protection & Environment | Battery Protection Level | IP67 |
| Charger Protection Level | IP55 | |
| Operating Temperature | −20°C to +40°C | |
| Storage Temperature | −30°C to +60°C | |
| Maximum Operating Altitude | ≤ 2000 m | |
| User Operation | Payment Method | QR Code Payment |
| User Interface | Touchscreen Interface | |
| Safety & Certification | Charging Safety Standard | UL2202 |
| Personnel Protection | UL2231-1 / UL2231-2 | |
| Battery Safety Standard | UL1973 | |
| Energy Storage Safety Test | UL9540A |
Industrial-Grade Safety System
Safety is a critical requirement for high-power charging systems. The charger includes multiple protection layers and real-time battery monitoring.
Safety features include:
Real-time cell monitoring
Early warning system
Multi-layer fuse protection
Single-pack fire protection design
Thermal runaway risk reduction
The system complies with major safety certifications including:
UL2202, UL2231-1,UL2231-2, UL1973,UL9540A
These certifications ensure compliance with North American EV charging and energy storage safety standards.

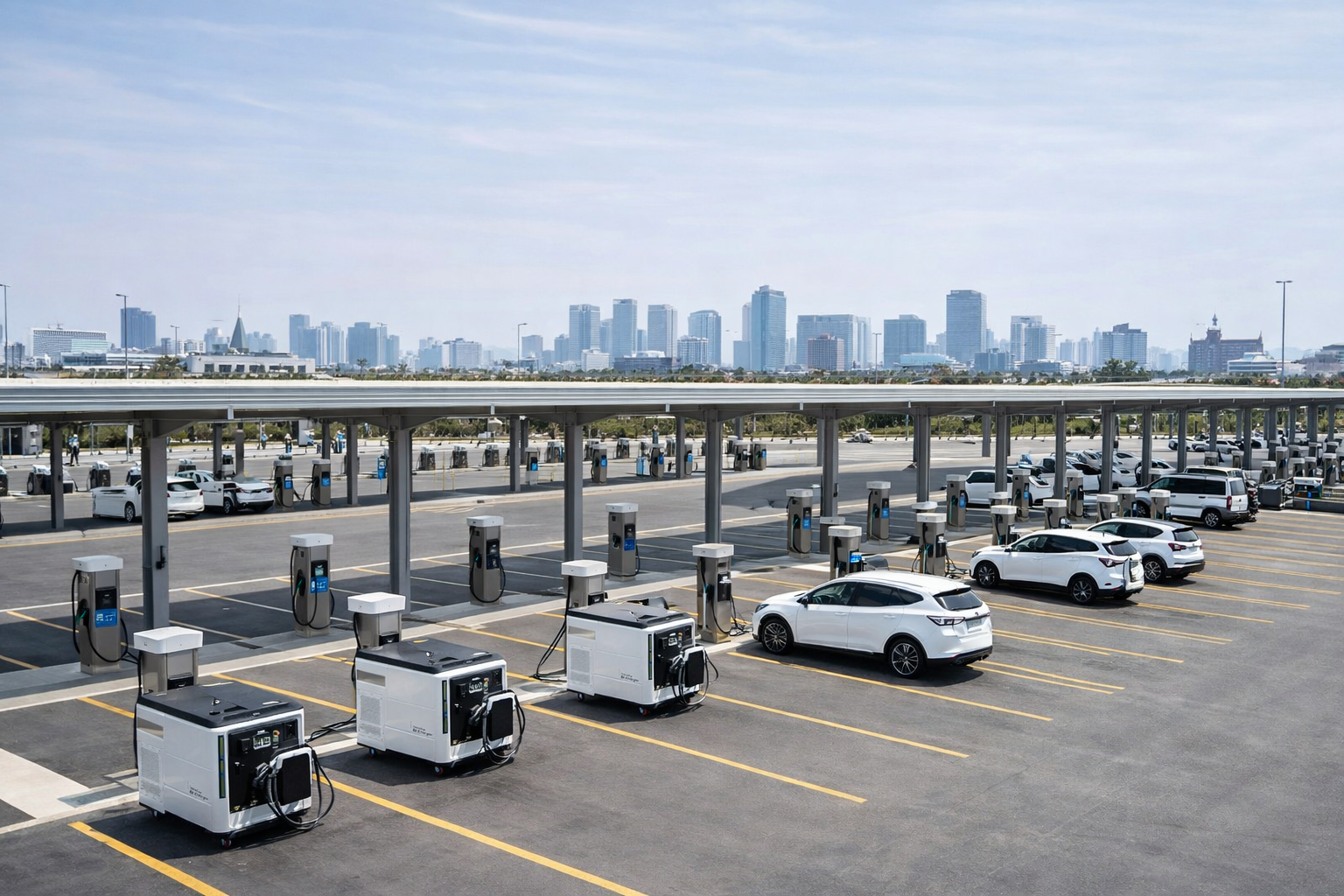

Ideal Deployment Scenarios
This battery-integrated DC fast charger is designed for locations where traditional fast chargers are difficult to deploy.
Typical use cases include:
Remote highway charging stations
Logistics and delivery depots
Bus and shuttle charging stations
Airport or railway parking areas
Construction sites
Temporary EV charging installations
Fleet charging facilities
Rural or off-grid locations
The built-in energy storage ensures reliable EV charging even with limited grid capacity.
EGbatt Nova120 Performance & Benefits
As EV adoption accelerates, charging infrastructure must adapt to grid constraints, remote locations, and high-power demand. The off-grid EV charger with integrated battery storage provides a flexible solution that combines: Fast charging, Energy storage, Smart energy management, Rapid deployment. This approach enables scalable EV charging infrastructure without expensive grid upgrades.
Contact US
Related BESS EV Charging Products
| Weight | 1000 kg |
|---|---|
| Dimensions | 1580 × 950 × 1100 cm |
Shipping Notice

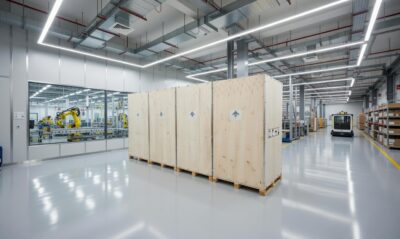

EGBATT has set a high standard for shipping lithium batteries. As lithium ion batteries fall under DG (dangerous goods) category, they use high-quality DG boxes or DG wooden cases to pack the batteries along with thick foam. This ensures that the batteries are delivered to customers in the best possible condition and without any damage.
