Commercial EV Charger with Battery Storage – 60kW / 60kWh Fleet Fast Charging Solution

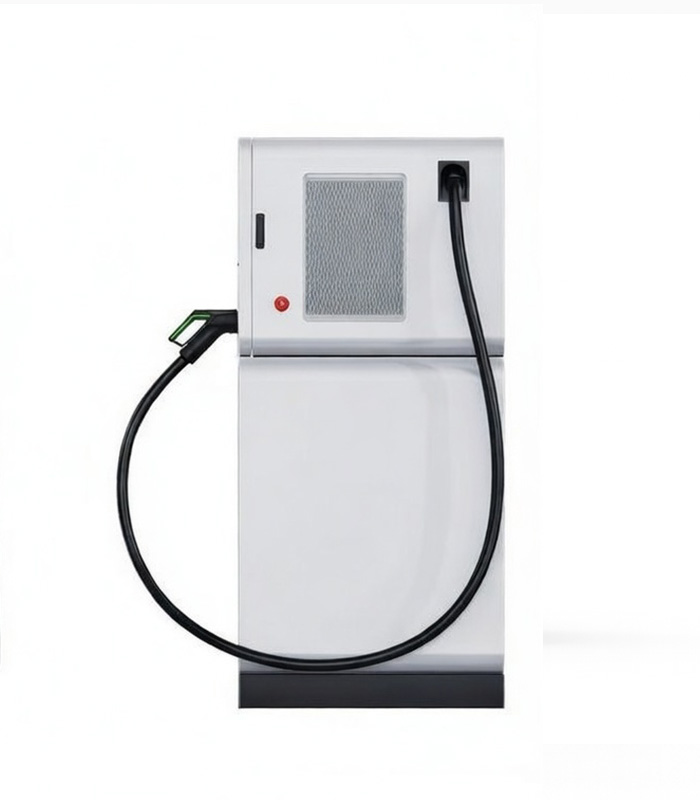

EGbatt 60kW Commercial EV Charger with 60kWh Integrated Battery Storage
The EGbatt 60kW Commercial EV Charger with Battery Storage is a fully integrated 60kW DC fast charging system with a built-in 60kWh lithium battery energy storage system, designed specifically for commercial charging stations, fleet depots, and business operations.
- True Energy Independence.Charge Anytime, Even Off-Grid.
With a 60kWh integrated LiFePO₄ battery, the SunHub 60 isn’t just tied to the grid. Store energy overnight when rates are low, or during the day via solar, and charge EVs during peak demand without paying peak prices. - Future-Proof Solar Integration.Harness the Power of the Sun.
Equipped with a 20kW PV input, this charger turns any parking lot into a microgrid. Directly connect solar panels to offset grid usage and offer truly “Green” energy charging to your customers. - Charge Any EV, Any Standard.One Machine. Every Electric Vehicle.
Don’t get locked out of the market. The SunHub 60 supports CCS, CHAdeMO, and GB/T protocols. From the latest Tesla to a Nissan Leaf, everyone can charge here. - Blazing Fast & Universal Voltage.Full Power at 200 Amps.
With an output voltage range of 150V to 1000V and a current of 200A, this charger delivers maximum 60kW speed to 800V architecture EVs (the newest models) as well as classic 400V vehicles.
Commercial EV Charger with Battery Storage – EGbatt Nova 60 Dual (60kW / 60kWh)
60kW Commercial EV Charger with 60kWh Integrated Battery Storage

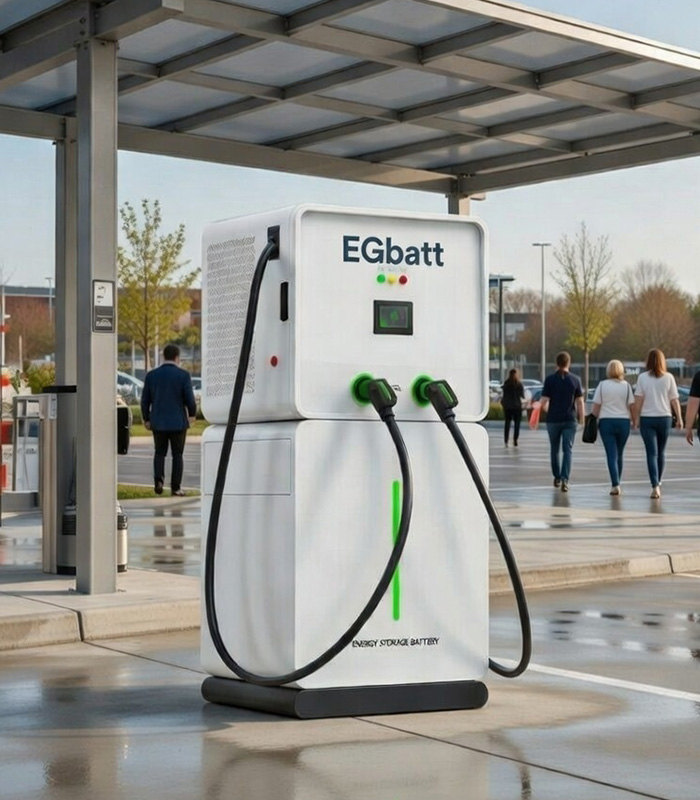

The EGbatt Nova 60 Dual is a commercial DC fast EV charger with integrated 60kWh LiFePO₄ battery storage, delivering up to 60kW DC fast charging with dual-gun simultaneous charging capability.
Designed specifically for commercial charging stations and fleet depots, Nova 60 Dual enables high-power EV charging even where grid capacity is limited, while reducing peak demand charges and supporting solar + grid hybrid energy input.
This makes it a future-ready battery-backed DC fast charger for businesses seeking reliable, scalable, and cost-efficient EV charging infrastructure.
Designed for Commercial & Fleet Charging Operations
The EGbatt Nova 60 Dual commercial EV charger with battery storage is engineered to meet the real operational challenges faced by fleet operators and charging network owners.
Ideal applications include:
- Fleet depots (logistics, delivery, taxi, municipal fleets)

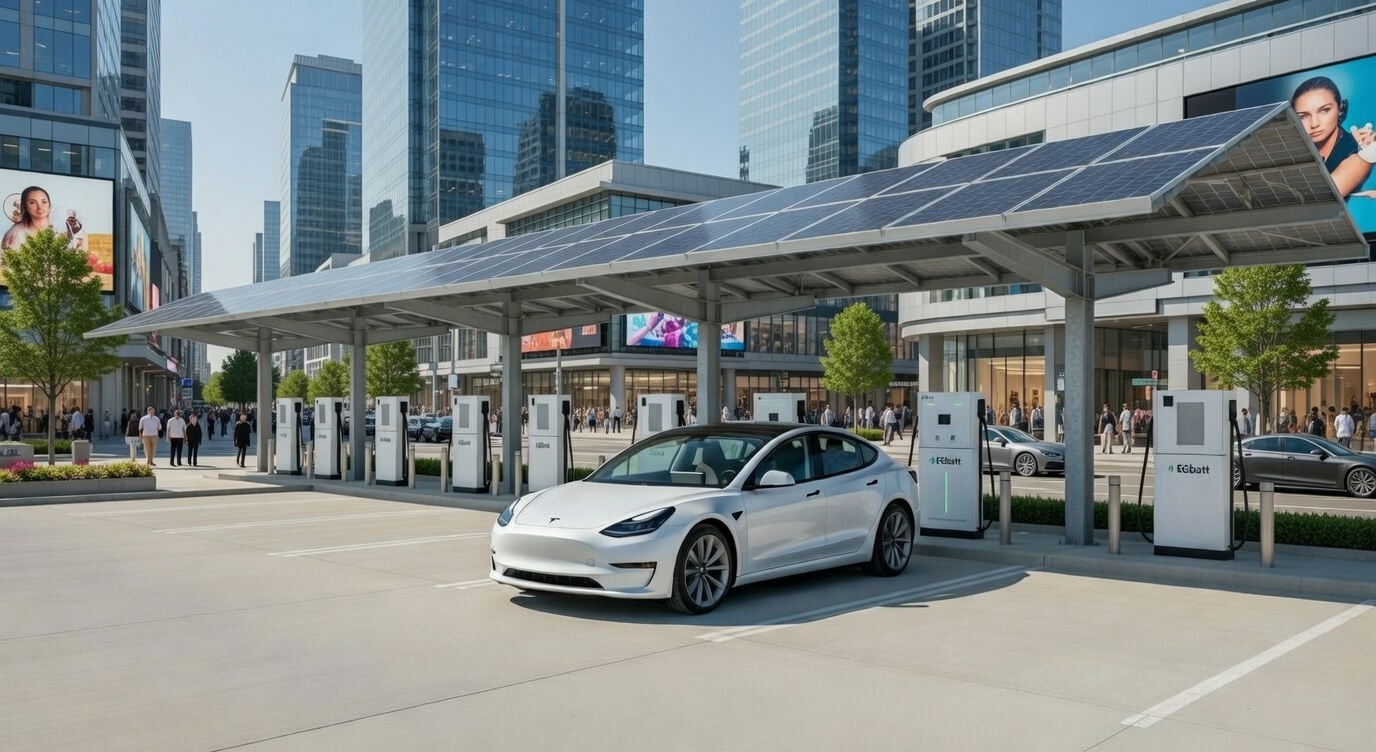

- Public & semi-public commercial charging stations
- Industrial parks and business campuses
- Retail parking and hospitality locations

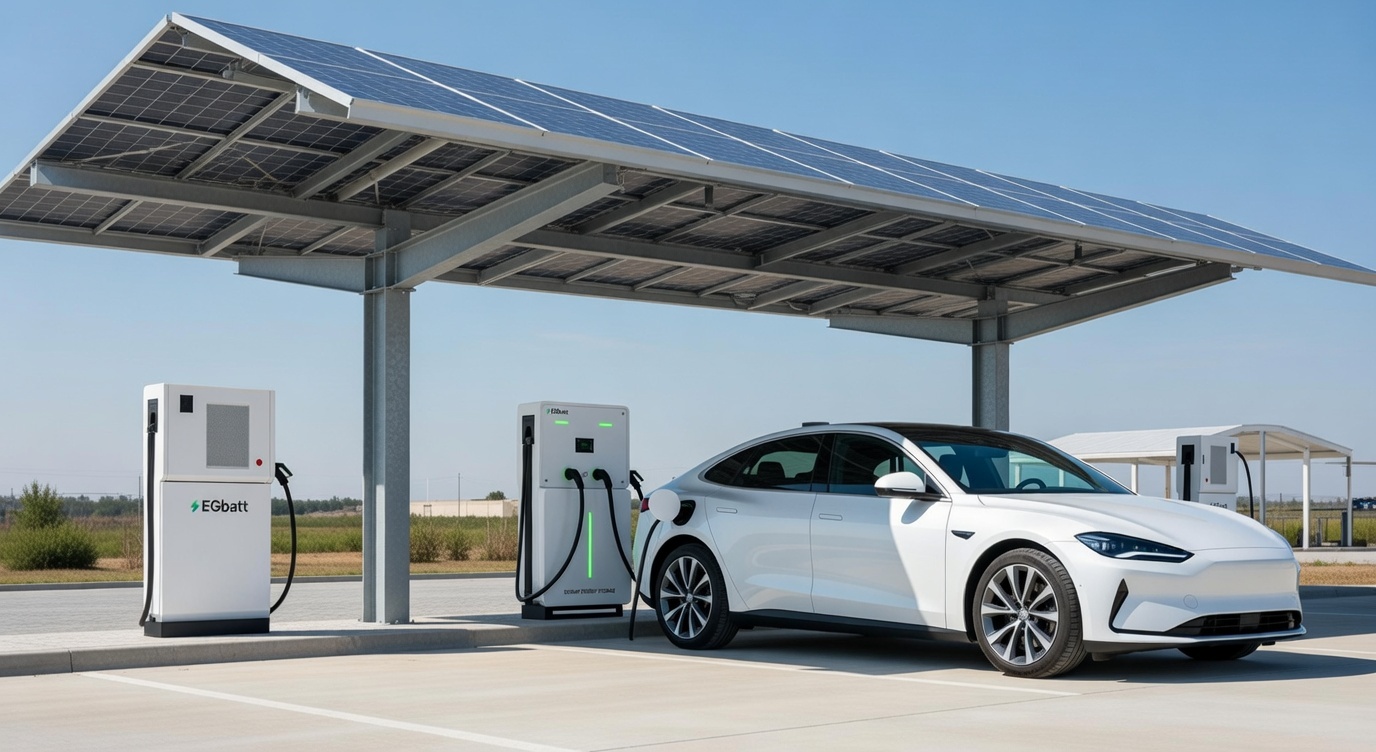

- Solar-assisted EV charging projects
With its integrated energy storage architecture, Nova 60 Dual reduces reliance on grid peak power while maintaining consistent fast-charging performance.
60kWh Integrated LiFePO₄ Battery Storage
At the core of the Nova 60 Dual is a 60kWh lithium iron phosphate (LiFePO₄) battery system, fully integrated inside the charger cabinet.
Battery advantages:
Long cycle life and high thermal stability
Enhanced safety compared to conventional lithium chemistries
Integrated active-balancing BMS
Optimized for commercial duty cycles
The built-in battery allows the charger to:
Store energy during off-peak hours
Utilize on-site solar generation
Deliver stable 60kW fast charging without stressing the grid
Provide charging continuity during grid fluctuations
This makes Nova 60 Dual a true commercial EV charger with battery storage, not a standard grid-dependent fast charger.
Grid + Solar Hybrid Energy Input
AC Grid Input (3-Phase)
Voltage range: 260V – 485V
Frequency: 45 – 65 Hz
Power factor ≥ 0.99
High power factor operation ensures grid efficiency and compliance with commercial electrical standards.
DC Solar Input (Optional)
Voltage range: 500V – 750V
Maximum PV supplemental power: 20kW
By integrating solar input directly, Nova 60 Dual functions as a solar EV charger with battery storage, enabling:
Reduced electricity costs
Higher renewable energy utilization
Improved project sustainability metrics
60kW DC Fast Charging with Dual-Gun Output
The DC output system supports:
Maximum output power: 60kW
Ultra-wide voltage range: 150V – 1000V
Maximum output current: 200A

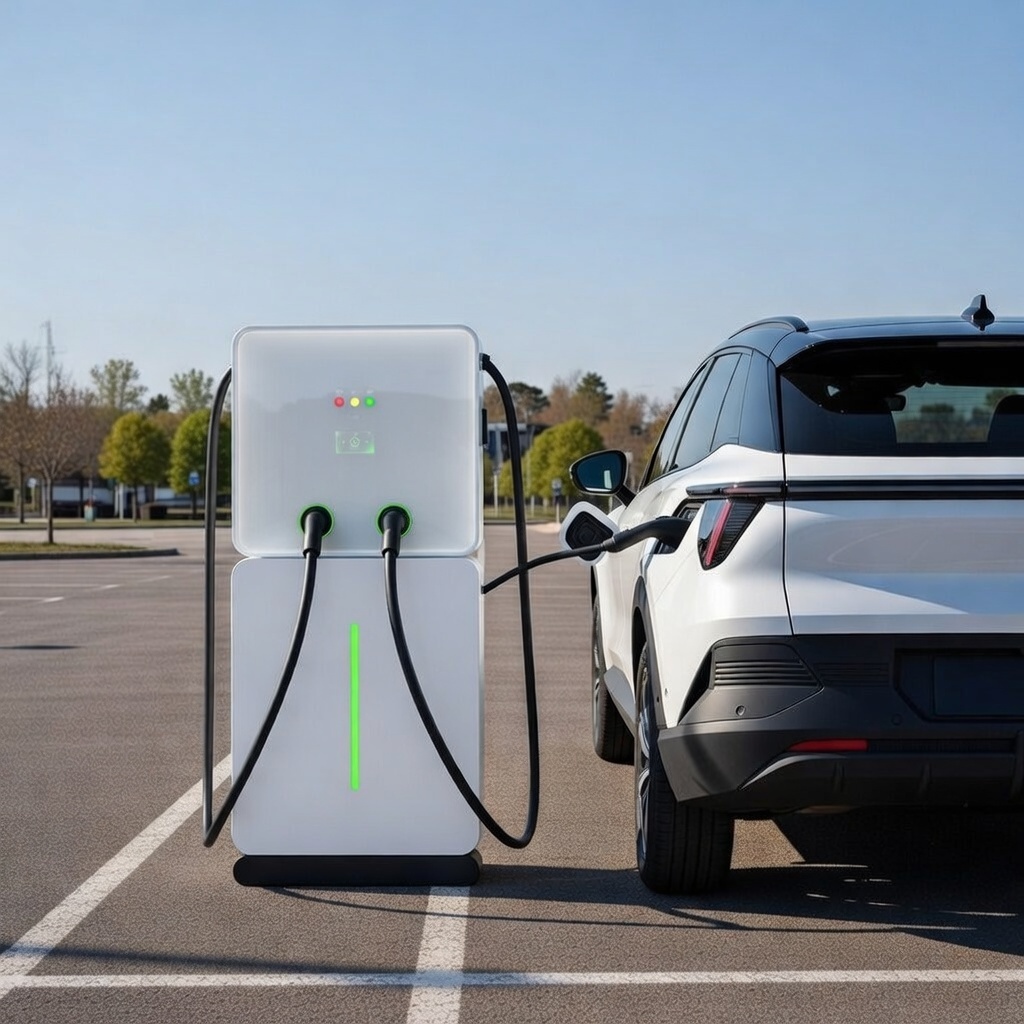

Dual charging guns: 2 vehicles simultaneously
Smart Power Sharing
Nova 60 Dual supports simultaneous charging, intelligently sharing power between two connected vehicles to maximize station utilization and revenue.
Multiple Charging Modes
Constant Power (CP)
Constant Current (CC)
Constant Voltage (CV)
This ensures compatibility with a wide range of EV models and charging profiles.
Rugged Design for Outdoor Commercial Use
The floor-standing metal enclosure is designed for long-term outdoor deployment:
IP54 dust & water resistance
Intelligent fan cooling
White coated commercial finish
Operating temperature: 0°C to +55°C
Humidity tolerance: 5% – 90% (non-condensing)
Altitude: <2000m
At approximately 1000kg, the unit is robust, stable, and suitable for high-traffic commercial environments.
| Category | Parameter | Specification |
| General Information | Product Model | EGbatt Nova 60 Dual |
| Charging Type | DC Fast Charging | |
| Battery Integration | 60kWh LiFePO₄ (Integrated) | |
| Dimensions | ||
| Weight | 1000kgs | |
| Enclosure Material | Metal / White Coated | |
| Mounting Type | Floor-Standing | |
| IP Rating | IP54 (Dust & Water Resistant) | |
| Cooling Method | Intelligent Fan Cooling | |
| AC Input (Grid) | Voltage Range | 260V – 485V (3-Phase) |
| Current | 0 – 92A | |
| Frequency | 45 – 65 Hz | |
| Power Factor | ≥ 0.99 | |
| DC Input (Solar) | Voltage Range | 500V – 750V |
| Max. PV Supplemental Power | 20kW | |
| Battery Storage | Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Capacity | 60kWh | |
| Battery Management System | Integrated BMS (Active Balancing) | |
| DC Output (Charging) | Max. Output Power | 60kW |
| Output Voltage Range | 150V – 1000V (Ultra-Wide) | |
| Max. Output Current | 200A | |
| Number of Guns | 2 (Dual-Gun) | |
| Charging Modes | Constant Power / Constant Current / Constant Voltage | |
| Communications & Connectivity | Network | LAN / Wi-Fi / 4G (Optional) |
| Protocol | OCPP 1.6 / 2.0 | |
| User Authentication | RFID / Mobile App / LCD Touchscreen | |
| Human-Machine Interface | 7" LCD Color Touchscreen | |
| Standards & Compliance | Charging Standards | GB/T / CCS1 / CCS2 / CHAdeMO 2.0 / DIN 70121 |
| Safety Compliance | CE | |
| Environmental | Operating Temperature | 0°C to +55°C |
| Temperature Management | Intelligent down-load @ >45°C | |
| Humidity Range | 5% – 90% (Non-Condensing) | |
| Max. Altitude | < 2000m | |
| Features | Energy Storage Replenishment | Charger Supplemental Power: Max. 60kW |
| Load Management | Dynamic Load Balancing (Optional) | |
| Simultaneous Charging | Yes (Power Sharing between two vehicles) |
How Battery Buffered Works
60kW Battery-Backed DC Fast Charger for Commercial & Fleet Charging Stations
The EGbatt Nova 60 Dual is a commercial EV charger with battery storage, combining 60kW DC fast charging power with an integrated 60kWh LiFePO₄ battery system in a single, floor-standing cabinet.
Designed for commercial charging stations and fleet depots, this battery-backed DC fast charger for businesses enables reliable fast charging while reducing grid dependency, peak demand charges, and infrastructure upgrade costs.
With dual-gun output, solar compatibility, and advanced energy management, the Nova 60 Dual is optimized for high-utilization commercial environments.
EGbatt Nova 60 Dual 60kW Performance & Benefits
The EGbatt Nova 60 Dual is a next-generation fleet EV charger with battery backup, engineered to solve one of the biggest challenges in EV infrastructure deployment: limited grid capacity.
By integrating a 60kWh lithium iron phosphate (LiFePO₄) battery directly into the charger, the system stores energy from the grid or solar PV and delivers stable 60kW DC fast charging to one or two vehicles simultaneously.
Contact US
Related BESS EV Charging Products
| Weight | 1000 kg |
|---|---|
| Dimensions | 1580 × 950 × 1100 cm |
Shipping Notice

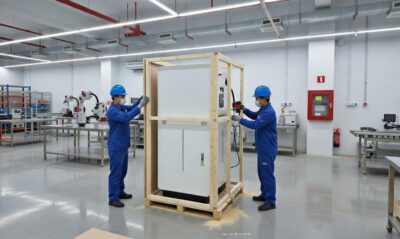

EGBATT has set a high standard for shipping lithium batteries. As lithium ion batteries fall under DG (dangerous goods) category, they use high-quality DG boxes or DG wooden cases to pack the batteries along with thick foam. This ensures that the batteries are delivered to customers in the best possible condition and without any damage.
We accept shipping
- By express or Air shipping like UPS, DHL, Fedex.
- Shipping by sea to port or to door service.
- FAC to Customer's forwarder company in China.
EGBATT ensures that all of its batteries meet the MSDS and UN38.3 standards. The packaging requirements for lithium batteries shipped by sea depend on the Watt-hour rating for lithium ion cells or batteries, or the lithium metal content for lithium metal cells or batteries. The packaging needs to meet UN specifications or be strong and rigid packing that can withstand the shocks, mechanical handling, and loading encountered during transport.
Shipping Regulation
If you are an international customer, please note that products will be shipped directly from China. To place your order, please contact odmbattery@outlook.com manually, rather than ordering on the website, as shipping costs may be inaccurate for regions outside of the USA.
EGbatt understands the importance of proper handling and regulation compliance when it comes to shipping lithium ion batteries. We take great care to follow all regulations for sea and air shipping to ensure the safe and secure transport of these potentially hazardous materials.
Shipping lithium ion batteries comes with specific guidelines outlined by transportation authorities, including the International Air Transport Association (IATA) and the International Maritime Dangerous Goods (IMDG) code, to minimize the risk of fire or explosion during shipping. These guidelines cover packaging, labeling, and documentation requirements, among other things. At EGbatt, we stay up-to-date with all current regulations and guidelines to ensure we are shipping our products safely and responsibly. We understand the risks involved with transporting lithium ion batteries and take the necessary precautions to minimize those risks for both our customers and our employees.
