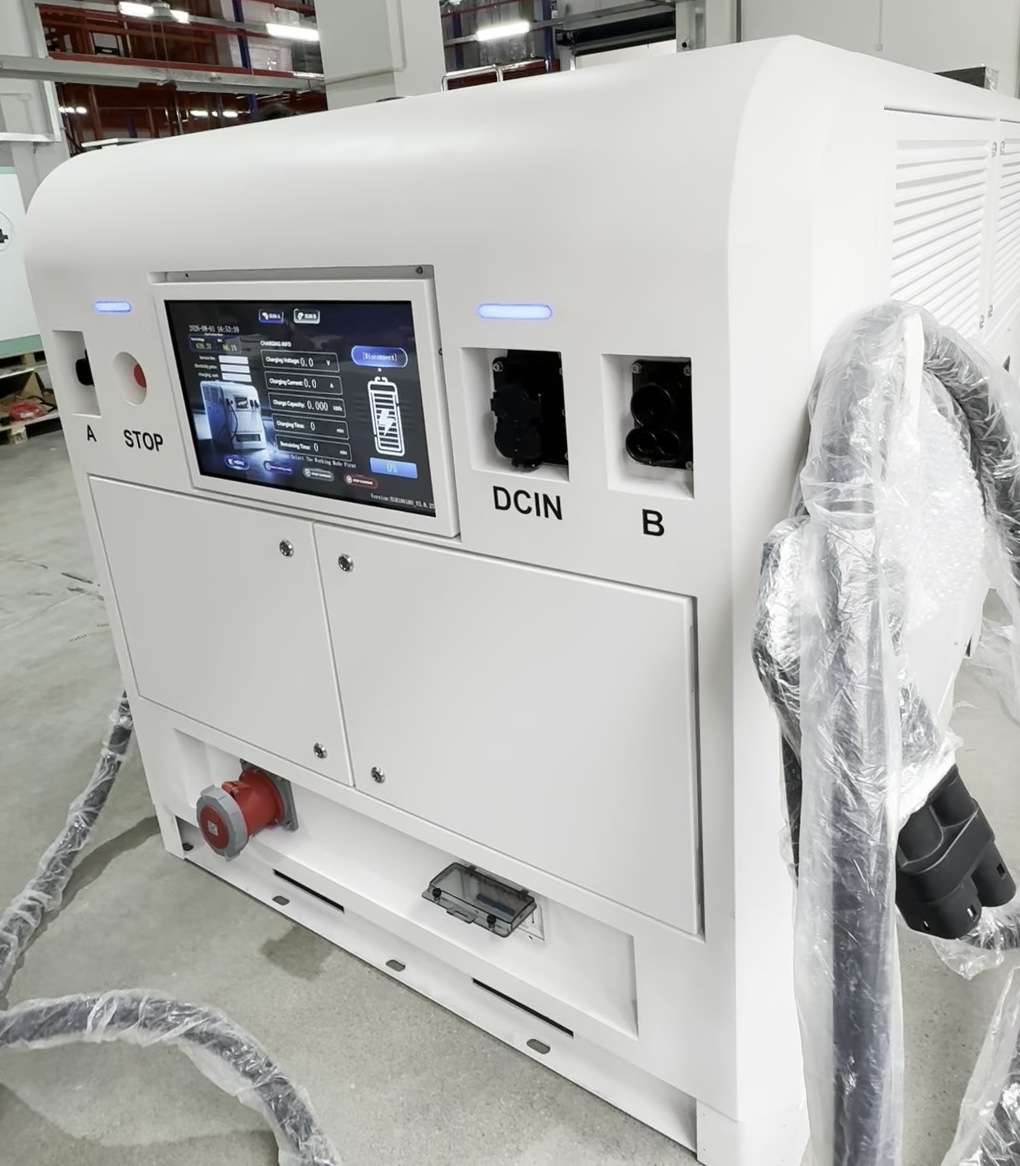

Mobile EV Charger with Battery Storage 150kW/180kWh – Dual-Gun DC Fast Charging Solution
EGbatt 150kW Mobile DC Fast EV Charger with 180kWh Integrated Battery
The EGbatt EG-Nova 150 Dual is a fully integrated 150kW DC fast charging system with a built-in 180kWh LiFePO4 battery energy storage system, delivering full charging power from any grid connection — or none at all. Designed for truck- or trailer-mounted mobile charging and rescue, it also installs permanently at depots, worksites, and parking lots.
- True Energy Independence — Charge Anytime, Even Off-Grid.
With a 180kWh integrated LiFePO4 battery, the EG-Nova 150 Dual isn’t tied to the grid. Store energy overnight at low rates, or during the day via solar, and charge EVs during peak demand without paying peak prices. - Future-Proof Solar Integration — Harness the Power of the Sun.
Equipped with a 20kW PV input for off-grid use, this charger turns any parking lot into a microgrid. Connect solar panels directly to offset grid usage and offer genuinely green charging. - Charge Any EV, Any Standard — One Machine. Every Electric Vehicle.
Dual guns configurable to CCS1, CCS2, GB/T, and CHAdeMO. From the latest 800V EV to a legacy model, everyone can charge here — two vehicles at once. - Blazing-Fast, Universal Voltage — Full Power at 250 Amps.
With an output voltage range of 200–1000 VDC at up to 250 A, the EG-Nova 150 Dual delivers the full 150 kW to 800V architecture EVs as well as classic 400V vehicles.
Mobile EV Charger with Battery Storage 150kW/180kWh – EG-Nova 150 Dual
The EGbatt EG-Nova 150 Dual is a 150kW battery-integrated DC fast EV charger with 180kWh of onboard LiFePO4 storage, delivering full 150kW charging power from any grid connection — or none at all. With dual charging guns and configurable CCS1, CCS2, GB/T, and CHAdeMO connectors, one machine serves every vehicle on the lot, from the latest 800V models to legacy platforms.
Designed for truck- or trailer-mounted mobile charging and roadside rescue, the EG-Nova 150 Dual can also be installed permanently at depots, worksites, and parking lots. A built-in 20kW PV input turns any location into a microgrid — store energy overnight at low rates, offset with solar during the day, and dispatch on demand without paying peak-demand charges.
This makes it a future-ready battery-buffered DC fast charger for fleets, operators, and EPCs seeking reliable, scalable, and grid-independent EV charging infrastructure.
📄 Download the datasheet: EG-Nova 150 Dual specification sheet (PDF)
Full 150kW from Any Grid Connection — or None at All
Unlike grid-dependent fast chargers, the EG-Nova 150 Dual decouples charging power from grid capacity. The integrated 180kWh LiFePO4 battery acts as a buffer, so the full 150kW output is available even where the grid connection is weak, congested, or absent.
- Store low, dispatch high — charge the battery overnight at off-peak rates and discharge during peak demand windows
- No grid upgrade required — deliver 150kW DC fast charging without waiting months for a utility upgrade
- Avoid peak-demand charges — shave demand peaks and cut electricity costs for commercial sites
- Keep charging through outages — onboard storage provides charging continuity during grid fluctuations
180kWh Integrated LiFePO4 Battery Storage

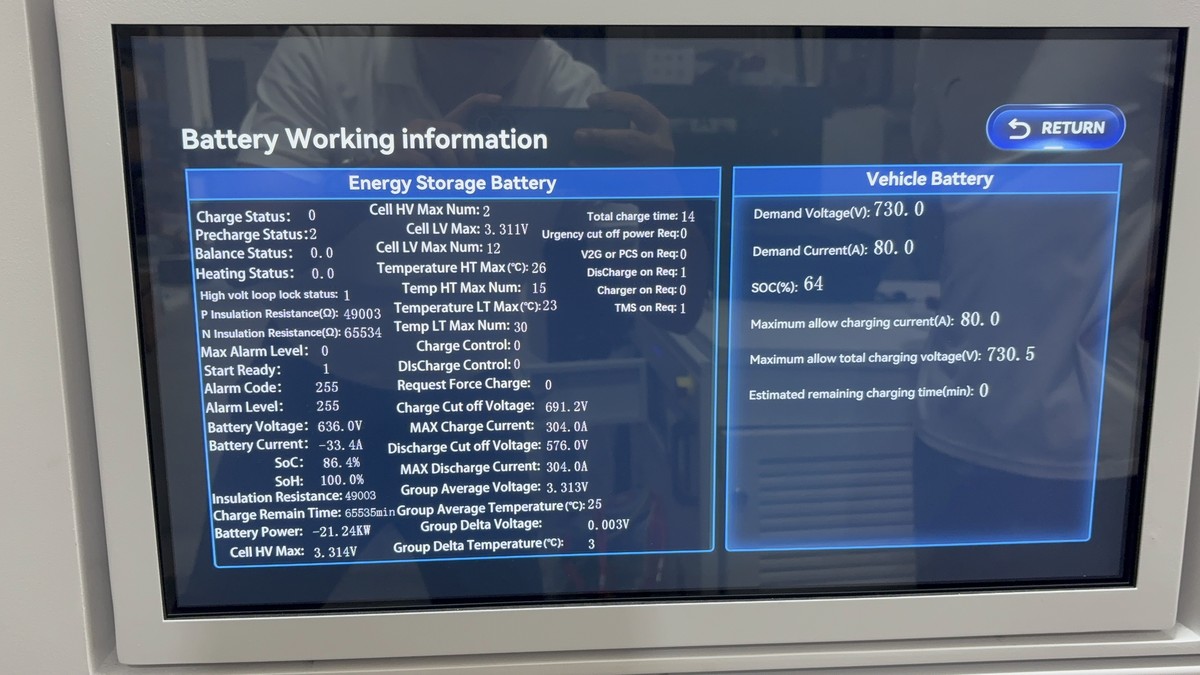

At the core of the EG-Nova 150 Dual is a 180kWh lithium iron phosphate (LiFePO4) battery system, fully integrated inside the charger cabinet and managed by an active-balancing BMS. Every parameter — cell voltages, temperatures, SOC, insulation resistance — is monitored in real time on the 14″ HMI.
- Long cycle life — ≥ 5,000 cycles @ 1C (80% DOD)
- High thermal stability — liquid cooling maintains optimal cell temperature across duty cycles
- Enhanced safety — LiFePO4 chemistry with integrated protection and emergency stop
- Wide operating range — charge 0°C to 50°C, discharge −10°C to 50°C
Dual-Gun Charging — One Machine, Every Standard

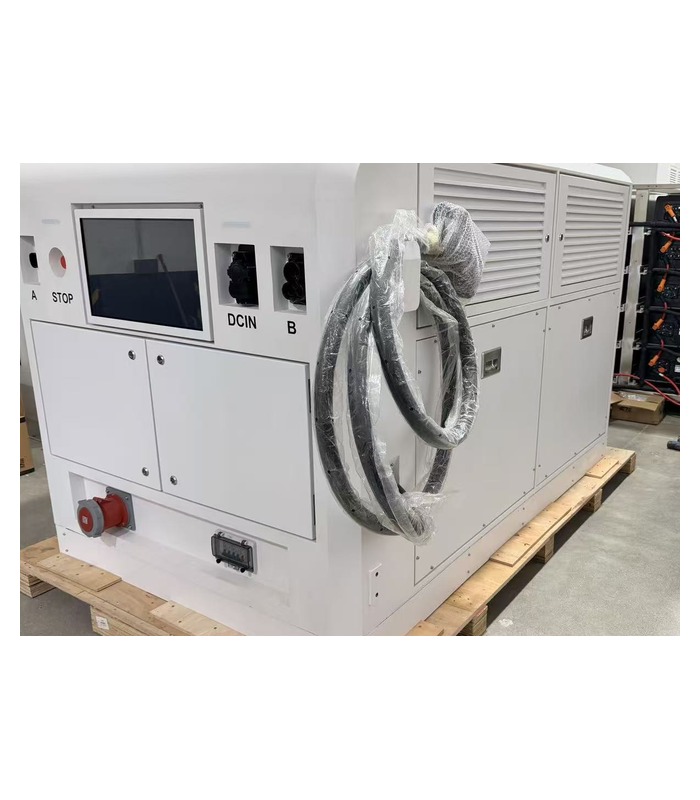

The EG-Nova 150 Dual ships with dual charging guns and dual 5m cables, configurable to CCS1, CCS2, GB/T, or CHAdeMO. Two vehicles can charge simultaneously, and every vehicle on the lot is served from a single SKU — from the latest EVs to legacy models.
- Universal voltage window — 200–1000 VDC output at up to 250 A covers 400V and 800V vehicle architectures
- Full power across the fleet — 150 kW serves passenger cars, light commercial fleets, and beyond
- Dual-gun throughput — two cables, two vehicles, double revenue per site
- OCPP 1.6J / 2.0 — open communication protocol (Open Charge Alliance) for network integration and smart charging
Four Working Modes — Charge and Discharge
Beyond EV charging, the EG-Nova 150 Dual is a bidirectional power asset. From the HMI, operators select between AC charge, DC charge, AC discharge, and DC discharge modes — enabling grid arbitrage, solar self-consumption, backup power, and mobile power supply from one cabinet.
Grid + Solar Hybrid Energy Input
AC Grid Input (3-Phase)
- Voltage: 260–480 Vac (3P+N+PE)
- Frequency: 45–65 Hz
- Current: 0–92 A
DC Solar Input (20kW PV)
- Maximum PV input power: 20kW — plug-and-play
- Directly connect solar panels to offset grid draw
DC Fast Charger Recharge
- The battery can also be recharged via an external DC fast charger (CCS1, CCS2, or GB/T)
By integrating solar input directly, the EG-Nova 150 Dual functions as a solar EV charger with battery storage, enabling reduced electricity costs, higher renewable energy utilization, and improved project sustainability metrics.

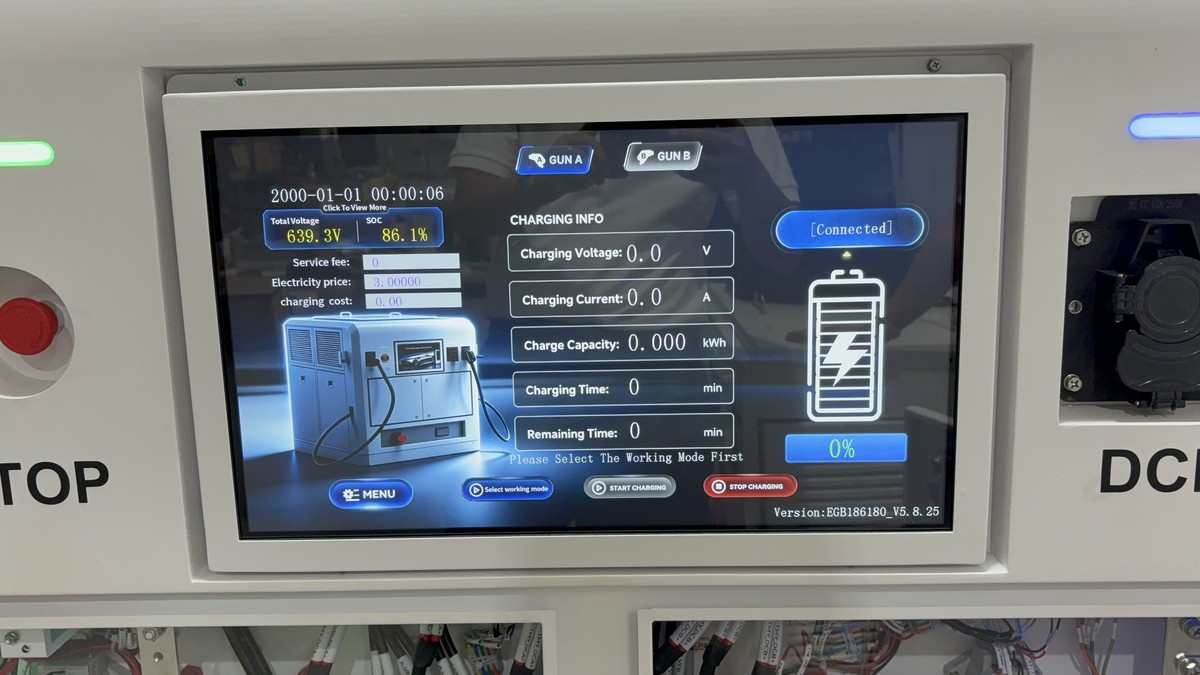

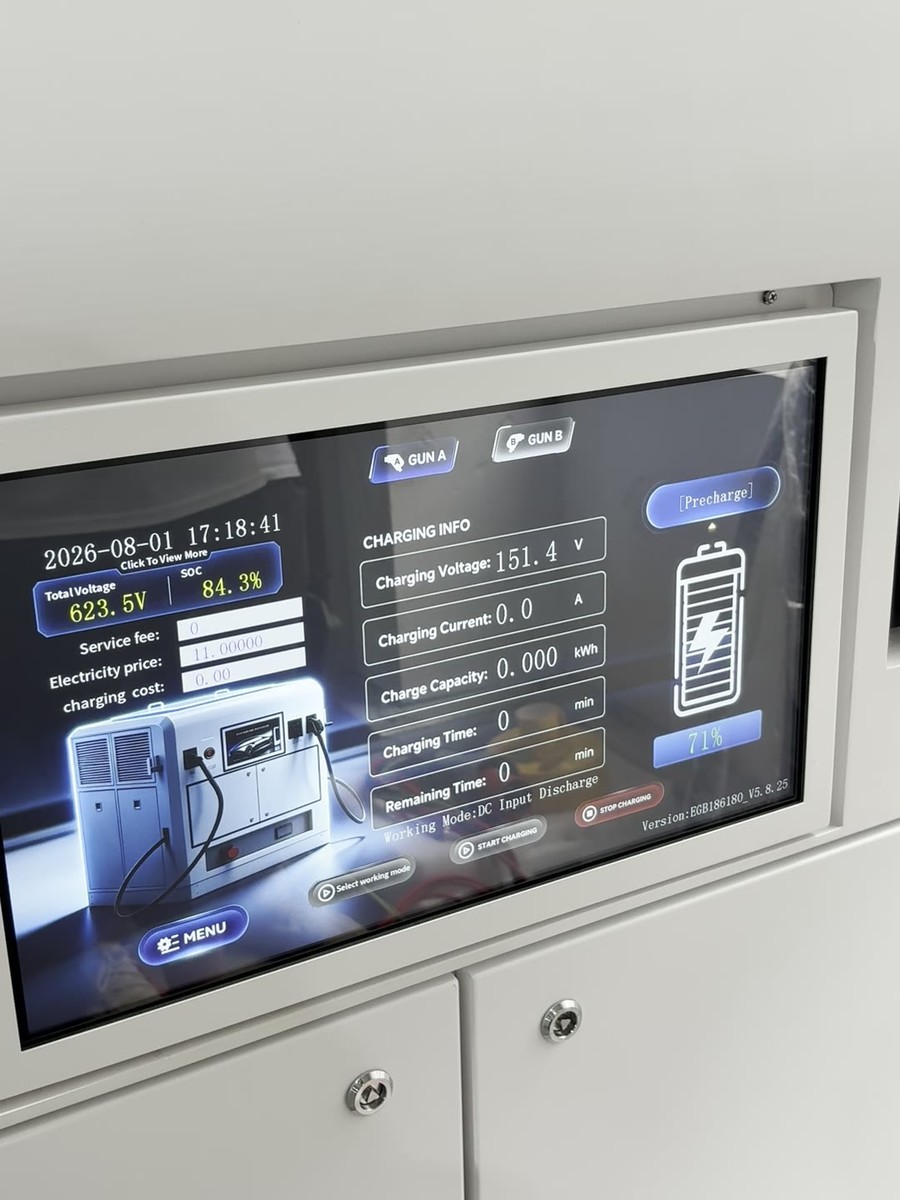

14″ Touchscreen HMI — Simple, Monitored Operation

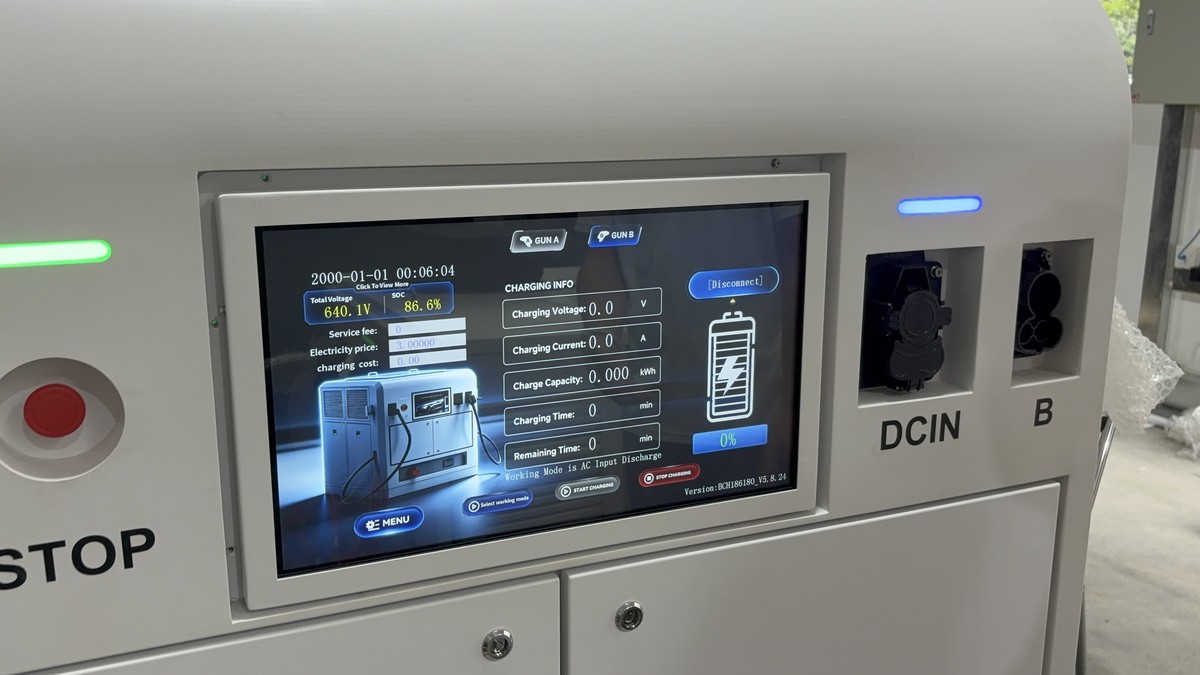

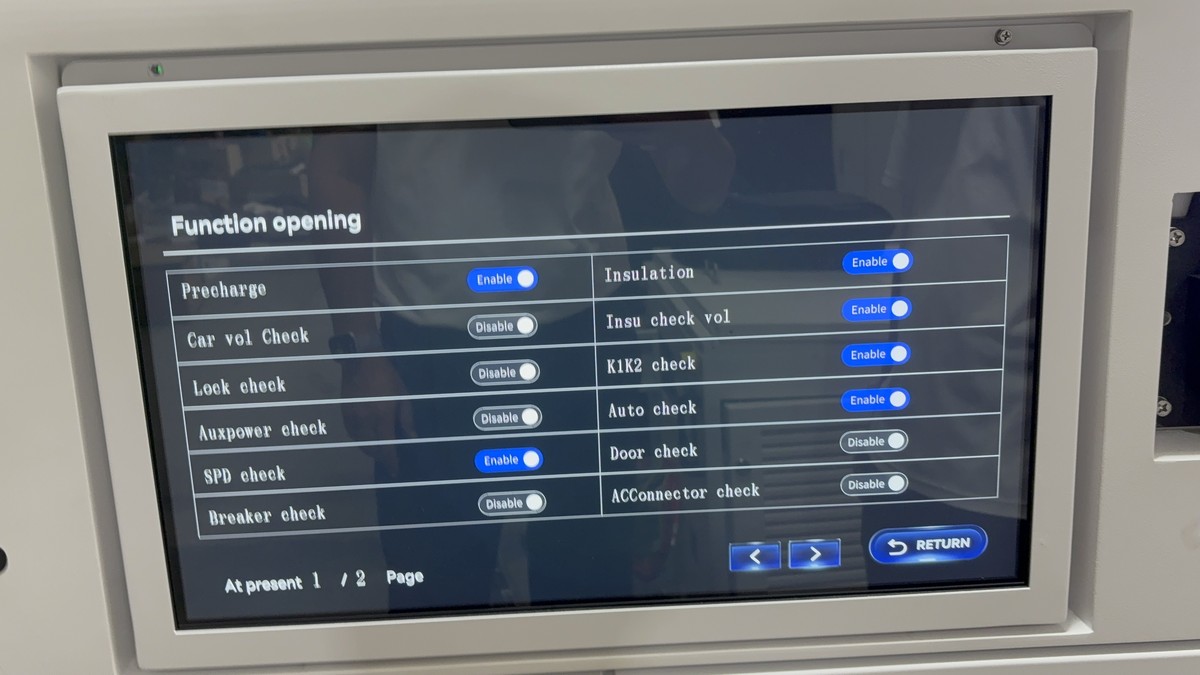

A 14″ LCD touchscreen HMI (English, customizable) puts charging control at your fingertips: select charging or discharging mode, monitor real-time voltage, current, and SOC, and manage both guns from one screen. Built-in system diagnostics — insulation monitoring, SPD check, breaker check, door check — run automatically before every session, so faults are caught before a vehicle is connected.
Designed for Mobile & Fixed Charging Operations
The EG-Nova 150 Dual is engineered to meet the real operational challenges faced by fleet operators, charging network owners, and rescue services.
Ideal applications include:
- Truck- or trailer-mounted mobile charging and EV rescue operations
- Fleet depots (logistics, delivery, taxi, municipal fleets)
- Public & semi-public commercial charging stations
- Construction sites, events, and temporary charging infrastructure
- Remote locations with limited, unstable, or unavailable grid power
- Solar-assisted EV charging projects and parking-lot microgrids
With its integrated energy storage architecture, the EG-Nova 150 Dual reduces reliance on grid peak power while maintaining consistent fast-charging performance — wherever the job site is.
▶ Watch the EG-Nova 150 Dual product video to see dual-gun charging and off-grid operation in action.
Comparing power classes for your site? Read our guide to DC electric car chargers from 50kW to 150kW.
Need the full parameter list offline? Download the EG-Nova 150 Dual datasheet (PDF).
Technical Specifications
| Charging Output | |
| Max Charging Power | 150 kW |
| Output Voltage | 200–1000 VDC |
| Output Current | Up to 250 A |
| DC Charging Gun | Dual gun / dual cable, configurable — CCS1, CCS2, GB/T, or CHAdeMO |
| Charging Cable Length | 5 m for both |
| Battery System | |
| Battery Capacity | 180 kWh |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cooling Method | Liquid cooling |
| Cycle Life | ≥ 5,000 cycles @ 1C (80% DOD) |
| Operating Temperature | Charge: 0°C to 50°C | Discharge: −10°C to 50°C |
| Energy Input | |
| Battery Recharge — Grid | 260–480 Vac (3P+N+PE), 45–65 Hz, 0–92 A |
| Battery Recharge — DC Fast Charger | Configurable via CCS1, CCS2, or GB/T |
| PV Input | 20 kW (plug-and-play solar offset) |
| Display & Control | |
| Display Screen | 14″ LCD touchscreen HMI — English (customizable) |
| Communication Protocol | OCPP 1.6J / 2.0 |
| Emergency Stop Button | Yes |
| Physical | |
| IP Rating | IP54 |
| Installation Type | Commercial charging station — fixed or truck/trailer-mounted mobile |
| Dimensions (L × W × H) | 2100 mm × 1500 mm × 1480 mm |
| Weight | ≤ 2,300 kg |
Why EGbatt
EGbatt designs and manufactures LiFePO4 energy storage and battery-integrated charging systems for industrial, commercial, and fleet buyers worldwide — factory-direct, with OEM/ODM support. Every EG-Nova unit ships with automotive-grade LiFePO4 cells, a self-developed BMS, and full documentation. Learn more about our off-grid mobile EV charger lineup and mobile DC fast charging solutions.
Frequently Asked Questions
What is a battery-integrated DC fast charger?
A battery-integrated (battery-buffered) DC fast charger has an onboard battery energy storage system — in this case 180kWh of LiFePO4 — that decouples charging power from the grid. The battery stores energy from the grid or solar and discharges it to deliver full charging power even where grid capacity is limited.
Can the EG-Nova 150 Dual charge EVs without a grid connection?
Yes. The 180kWh onboard storage delivers the full 150kW output off-grid. The battery is recharged via the AC grid (260–480 Vac), an external DC fast charger (CCS1/CCS2/GB/T), or the 20kW PV input.
Which EV connectors does the EG-Nova 150 Dual support?
Dual guns, each configurable to CCS1, CCS2, GB/T, or CHAdeMO — one machine serves every vehicle on the lot. Both cables are 5 m long.
Can it be mounted on a truck or trailer?
Yes. The EG-Nova 150 Dual is designed for truck- or trailer-mounted mobile charging and rescue operations, and can also be installed permanently at a fixed site.
How long will the 180kWh battery last?
The LiFePO4 battery is rated for ≥ 5,000 cycles at 1C with 80% depth of discharge, with liquid cooling to maintain cell temperature across commercial duty cycles.
Is the EG-Nova 150 Dual suitable for outdoor installation?
Yes. The cabinet is IP54 rated with an emergency stop button, designed for commercial charging station environments — including outdoor parking lots and worksites.
Contact the EGbatt team for specifications, lead times, and OEM/ODM configuration options — or browse the full Battery-Integrated DC Fast EV Charger series, including the EG-Nova 60 Dual and EG-Nova 120.
